ASMedia PCIe 2-Port Packet Switch

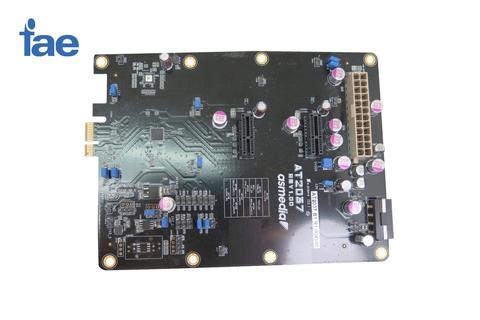

PCIe Switch with EVB Evaluation Board
ASMedia PCIe 2-Port Packet Switch contains an evaluation board that functions as an add-on for users to measure performance of the packet switch. Drop us a message to learn more about this PCIe controller.
▌Product Features
- Standard Compliant
- PCI Express base SPEC 2.0 and backward compatible with SEPC 1.1 & 1.0a
- PCI power management SPEC 1.2
- Port configuration
- 1 PCIe x1 lane Gen2 upstream port to 2 PCIe x1 lane Gen2 downstream ports
- PCIe power management
- Link state L0, L0s, L1, L2/L3 Ready and L3
- Device state D0, D3 hot
- Short latency delay
- Integrate 100MHz PCIe differential clock buffer - no extra clock buffer needed
- Support I2C interface for debug usage
- Packaging: 7 x 7 QFN48 RoHS package
