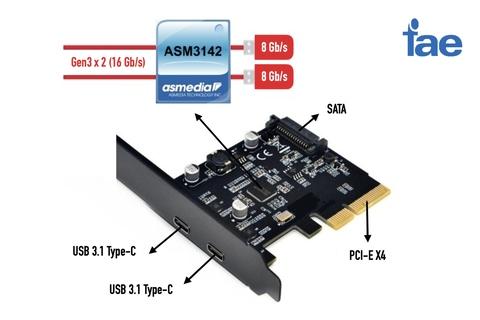

ASMedia PCIe Gen3 to USB Host Controller

PCIe to USB 3.1 Host Controller with Function of Power Management

ASMedia PCIe Gen3 to USB Host Controller features multiple INs for up to 10 Gbps data rate and advance process for low voltage supply and power management. Contact us for further details.

▌Product Features

  • PCI Express bridge to USB 3.1
  • Integrate Extensible Host Controller
  • Upload firmware through external SPI ROM
  • External 20MHz differential crystal
  • Support driver on Windows7, Windows8, Windows 8.1, and Windows 10
  • Support various Linux kernels
  • Compliant with eXtensible Host Controller Interface specification Revision 1.1
  • Application for motherboard, desktop PC, notebooks, workstations, servers, add-in cards, and PCI Express based embedded platform
  • Packaging: 9x9 QFN64 (Pb-free) RoHS compliance green packaging
▌PCI Express Features
  • Support PCI Express Gen-III x2
  • Support high bandwidth performance with low latency
  • Support PCI Express Link power management
  • No lane reversal support
  • Integrate Spread Spectrum Controller for PCI Express interface
  • Overclock capability on PCI Express bus
  • Support SRIS mode
  • Compliant with
    • PCI Express Base 3.0 Specification
    • Express Card Electromechanical 2.0 specification
    • PCI Express Mini Card Electromechanical 1.2 specification
    • PCI Bus Power Management Interface Specification Revision 1.2
    • PCI Local Bus Specification Revision 3.0
▌USB Features
  • Up to USB 3.1 Gen-II 10Gbps
  • Support two ports of USB 3.1
  • Support independent port power control
  • Support multiple INs function
  • Support USB 3.1 and USB 2.0 Link Power Management
  • Support Control, Bulk, Stream, Interrupt, Isochronous transfer type
  • Support overcurrent detection
  • Support Remote/Wakeup event
  • Support the Debugport
  • Integrate Spread Spectrum Controller for USB 3.1 interface
  • Backward compatible with Legacy USB function and device
  • Compliant with
    • Universal Serial Bus 3.1 Specification Revision 1.0
    • Universal Serial Bus Specification Revision 2.0
    • USB Attached SCSI Protocol Revision 1.0
