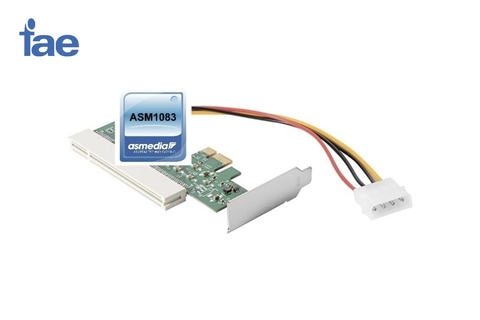

ASMedia PCI Express to PCI Bridge Controller
ASMedia PCI Express to PCI Bridge Controller
ASM1083
ASMedia PCI Express to PCI Bridge Controller supports various specification for industrial standards and requirements. It features 100-MHz differential PCI Express reference clock and supports up to 3 PCI masters. Email us to learn more.
▌Product Features
- Support I2C Serial EEPROM
- Support PME
- 3.3/1.2v power supply
- Support legacy mode
- Support industrial specifications
- PCI Express base specification Rev. 1.0a/ 1.1
- PCI bus power management interface Rev.2.0
- PCI Express card electromechanical Rev.2.0
- PCI specification Rev.3.0
- PCIE to PCI/PCIX bridge specification Rev.1.0
- 14mmx14mm 128-pin LQFP and RoHS compliance green packaging
- Packaging: QFP 128L
▌PCI Express Features
- Single x1 PCI Express lane
- 2.5GHz signaling
- Support SSC
- ECRC and Advanced Error Reporting capability
- 100-MHz differential PCI Express reference clock
- Maximum payload size up to 128 bytes
- No PCIe ASPM support
▌PCI Features
- 33 MHz PCI bus
- Support up to 3 PCI masters
- CLKRUN support
- PME support
- 5V tolerance on 3.3v PIC
