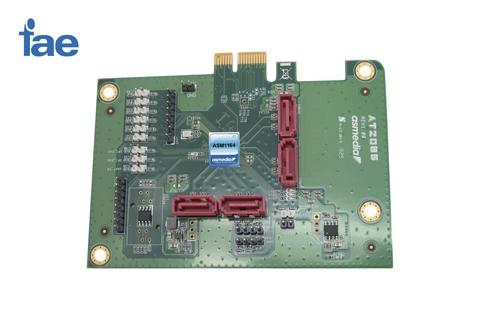

ASMedia AHCI SATA Host Controller

Key Features
ASMedia AHCI SATA Host Controller features two upstream PCIe Gen3 and four downstream SATA Gen3 ports. It allows users to build up high speed I/O systems, including servers, high-capacity system storage or surveillance platforms. Order now by contacting us.

Key Features

ASMedia AHCI SATA Host Controller features two upstream PCIe Gen3 and four downstream SATA Gen3 ports. It allows users to build up high speed I/O systems, including servers, high-capacity system storage or surveillance platforms. Order now by contacting us.

▌Product Features
  • 25MHz Crystal
  • Support SSC for both PCIe and SATA
  • GPIO for extra I/O control
  • Packaging: 8x8 QFN64
▌PCle Interface
  • 2- 1- lane PCIe® connecting with root port
  • Automatic detection of lane configuration on boot-up
  • Supporting transfer rate of 2.5Gb(250MB/s), 5Gb(500MB/s) or 8Gb(1GB/s) per lane
  • Support L0s/L1/L23/L3 power saving states
  • Support L1 substate deep power saving mode
  • Support LTR
  • Support AER
  • Support SRIS
  • Max payload size = 256 byte
▌SATA Interface
  • AHCI Specification Rev. 1.4
  • Four SATA Gen3 (6GBps) ports
  • Support NCQ
  • Support SATA LED
  • Supported port multiplier with command-based switching
  • Support Partial/Slumber power management
  • Support for power management
